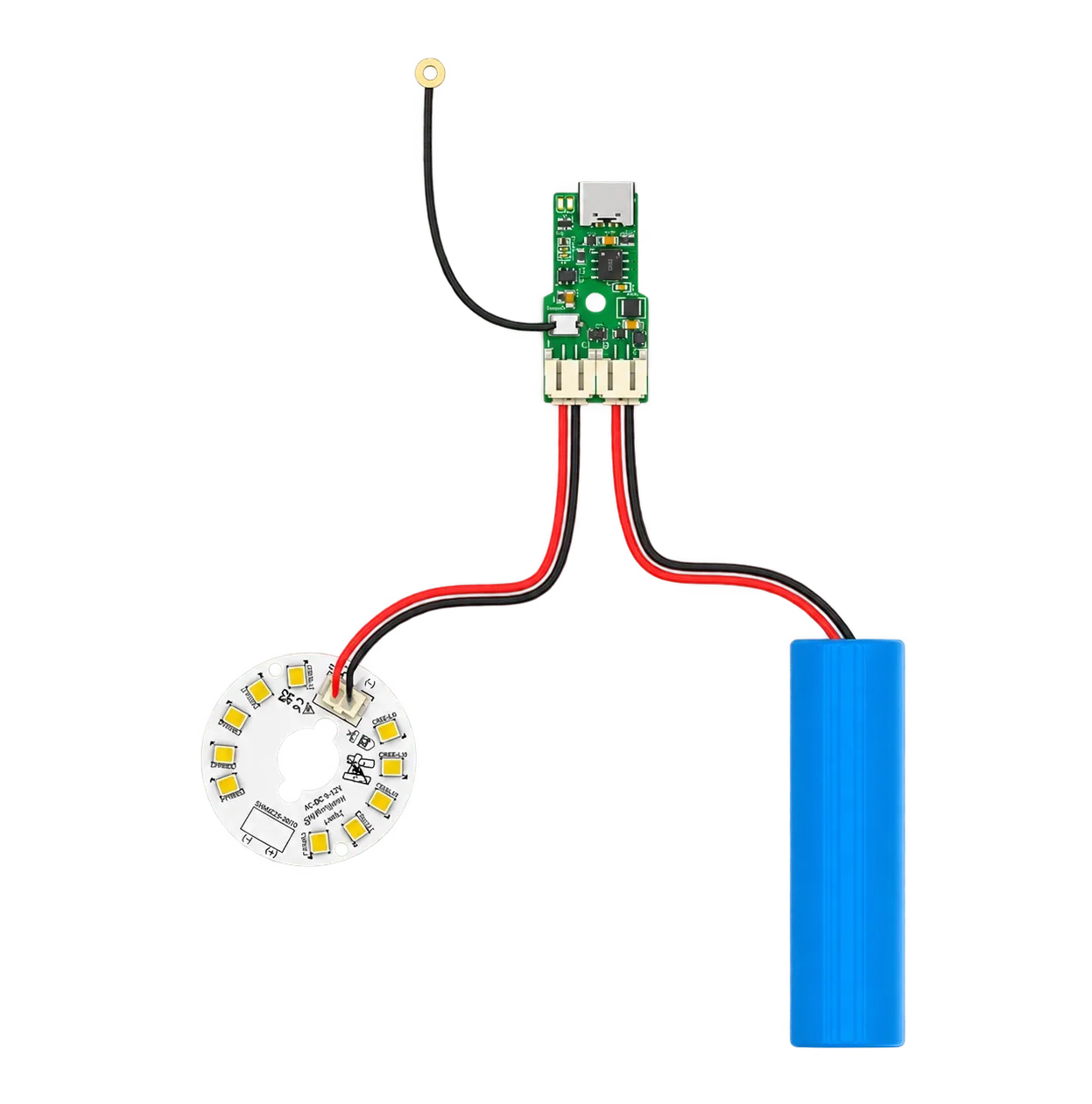

Development kit for evaluating and assembling a rechargeable single-colour decorative lamp around the Smart Handicrafts 201 LC low-cost driver family.
Product Description
| Parameter | Details |
|---|---|
| Product | KIT - Rechargeable 1 Colour Lamp Development (LC) |
| Product Category | LC rechargeable lamp development kit — single colour |
| Brand | Smart Handicrafts® |
| Model / SKU | AS-B-RK-LC |
Features
| Feature | Details |
|---|---|
| Purpose | Rapid prototyping of compact rechargeable single-colour lamp concepts |
| Lighting format | Single-colour LED lamp using a matching low-power COB |
| Control | Touch-operated on/off and dimming functionality on the referenced 201 LC driver family |
| Configuration | Kit contents and connection accessories depend on the option ordered; confirm the supplied bill of materials |
Technical Specifications
| Parameter | Details |
|---|---|
| Driver family | 201 LC (low-cost rechargeable single-colour driver) |
| Referenced driver USB input | 5 V DC via USB Type-C, 1 A maximum |
| Referenced maximum LED power | 2 W single-colour LED output |
| Recommended LED | 2 W single-colour COB; 20 mm and 35 mm versions are available separately |
| Recommended battery family | 1200 mAh Li-ion cell, subject to the selected kit configuration |
| Lamp output format | Single colour, not RGB or dual CCT |
Lead Time & Shipping
| Parameter | Details |
|---|---|
| Dispatch | Based on order quantity, available stock and any customisation; confirm at order acceptance. |
| Sample and bulk orders | Sample and bulk lead times are confirmed with your quotation or order. |
| Shipping | Method, charges and estimated transit time depend on the destination and chosen service. |
Warranty & Support
| Parameter | Details |
|---|---|
| Warranty applicability | Applicable warranty terms are provided with the confirmed order and depend on product category and supply conditions. Please request details if required. |
| Order assistance | For order issues or manufacturing-defect queries, contact care@smarthandicrafts.com and provide your order reference. |
| Installation-related damage | Electrical compatibility and installation must be checked before assembly; incorrect connections may damage components. |
Compatibility & Use
| Check | Guidance |
|---|---|
| LED selection | Use a compatible 2 W LED with the 201 LC driver; do not treat 3 W or 5 W COBs as supported on this LC version |
| Battery and wiring | Confirm included cell, connector pitch, polarity and orientation against the actual ordered kit |
| Assembly | Intended for low-voltage lighting prototypes and assembled lamps; validate wiring before energising |
Product-specific technical sheets and compliance documents, where available and applicable, can be requested for verification. Please mention the exact SKU when requesting documentation so we can check the applicable version.
Request documents: care@smarthandicrafts.com — include product name, SKU, quantity and intended application.
Frequently Asked Questions
| Question | Answer |
|---|---|
| Can I use a 3 W or 5 W COB? | Not with the 201 LC driver specification shown for this kit family; select a suitable 2 W LED. |
| Is the battery included? | Contents vary by selected configuration. Please request the itemised kit contents for your chosen option. |
| Does it support RGB/CCT? | No. This is the single-colour LC development kit. |
