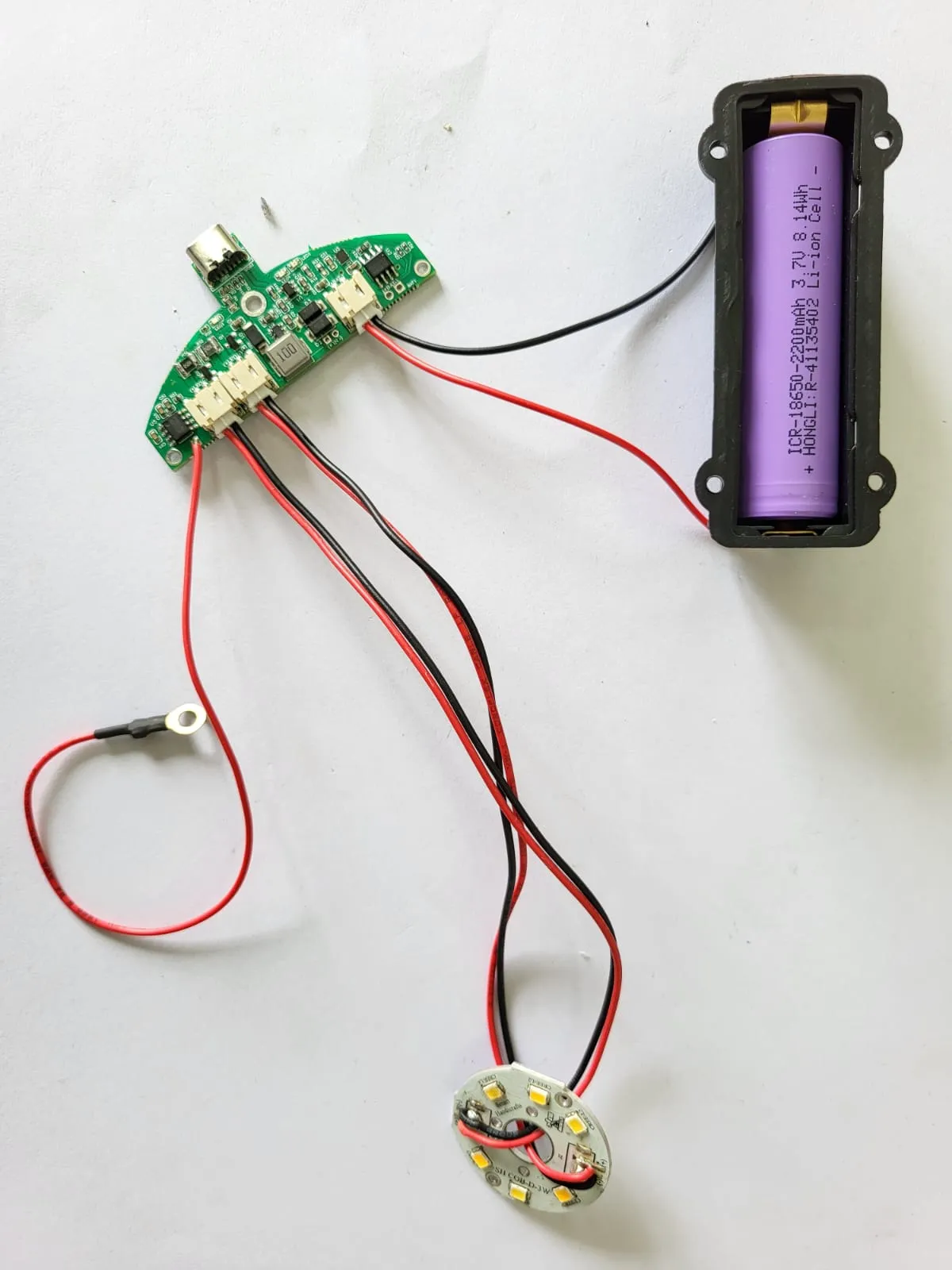

KIT - Rechargeable 3 Colour Lamp Development

KIT - Rechargeable 3 Colour Lamp Development

​ ​ ​ ​ ​ (0 review)
202 RECHARGEABLE KIT

Configure your 202 kit

Build a rechargeable 3-colour touch lamp around the fixed 202 driver. Choose the LED, battery, touch finish and wire lengths; the required parts update automatically.

Driver 202 fixed View assemblyInteractive 202 kit
CORE KITRequired components
Select what you need. Dependencies are automatic.
DriverFixed
Main control board
202 Rechargeable Driver
202 Rechargeable Dual / 3 Colour DriverAS-B-202-DLD
…
Qty1
LED setupSelect
Choose one setup
Qty1
BatterySelect
Choose one battery
Qty1
LED connectionAuto
Driver 202 needs 2 JST leads
2 Pin JST Wire
2 × 2-Pin JSTLength not selected
—
Qty2
Touch setupSelect
Finish, wire and body
Lug WireLength not selected
—
Lamp bodyControls grommet
Included automatically
Qty1
Optional accessoriesCharging connector + lens
ChargingOptional
Maximum one connector
QtyOpt.
LensOptional
35mm COB accessory
QtyOpt.

Options


Add to cart
Buy now
Price
₹ 499.00 ₹ 499.00  (Excl. GST)



Shipping: For Samples : 2-3 Business Days

Have a bulk order?

Click here

Need Support?

Click here

Warranty
Contact Us
Parameter Details
Overview Smart Handicrafts® Rechargeable 3 Colour Lamp Development Kit is a complete electronics platform for building touch-controlled rechargeable table lamps, decorative lamps and portable lighting products.
Kit Platform Built around the 202 Rechargeable Dual / 3 Colour LED Driver, designed for dual-channel warm white and cool white LED operation.
Lighting Modes Supports Warm White, Cool White and combined Neutral/3-colour lighting operation with compatible dual LED modules.
LED Compatibility Compatible with 3W Dual / Warm-Cool LED and 5W Dual / Warm-Cool LED modules.
Battery System Designed for a 3.7V 2600mAh Li-ion rechargeable battery. Sleeved and non-sleeved battery configurations can be used; the non-sleeved version requires an 18650 battery holder.
Touch Control Capacitive touch control for lamp operation, colour switching and brightness control.
Connection System Uses separate LED-channel wiring with 2 × 2-pin JST connections for the dual LED configuration.
Touch Hardware Supports SS touch screw, brass touch screw or Gold Finish touch configurations with the appropriate lug wire, nut and insulation hardware.
Charging Options USB-C charging is integrated into the 202 driver. Optional panel-mount USB charging connectors can be added for enclosed lamp designs.
Custom Configuration Customers can select the LED, battery type, JST wire length, touch-wire length, touch system, lens and optional charging accessories directly from the kit configurator.
Applications Suitable for rechargeable table lamps, bedside lamps, decorative lighting, hospitality lighting, prototype lamps, designer lighting products and OEM lamp development.
Development Use Designed for lamp manufacturers, designers, prototyping teams, DIY developers and lighting-product development projects.
3D Assembly Interactive assembly guidance is available on the 202 Kit 3D Assembly page at smarthandicrafts.com/kit-202.
Parameter Details
Model AS-B-202-DLD-K
Product Type Rechargeable 3 Colour Lamp Development Kit
Main Driver 202 Rechargeable Dual / 3 Colour LED Driver
Driver Code AS-B-202-DLD
Input / Charging 5V DC via USB-C
Battery Voltage 3.7V Li-ion
Recommended Battery 2600mAh 18650 Li-ion
Battery Options 2600mAh With Sleeve / 2600mAh Without Sleeve
Battery Holder Automatically required with 2600mAh battery without sleeve
LED Output Type Dual-channel LED output for Warm White + Cool White
Compatible LED Power 3W Dual LED / 5W Dual LED
Maximum LED Rating Up to 5W
Colour Modes Cool White / Warm White / Neutral
Control Method Capacitive Touch
Brightness Control Touch-controlled dimming
LED Connections 2 × 2-Pin JST connections per dual LED
JST Wire Length Customer-selectable
Touch Wire Length Customer-selectable
Touch Options SS Touch Screw / Brass Touch Screw / Gold Finish Touch
Body Compatibility Metal / conductive and wood / non-conductive lamp bodies
Insulation Hardware Insulating grommet used with screw-touch systems on conductive lamp bodies
Optional Lens Clear / Frosted lens for compatible 35mm dual LEDs
Optional Charging Accessories Panel Mount USB Connector / Indicator Version / Snap-Fit Version
Kit Quantity Configurable; all component quantities scale automatically
Inventory Method Individual physical components are added separately to the Odoo cart and stock
Primary Applications Table Lamps, Decorative Lamps, Rechargeable Lamps, Portable Lighting, OEM Lamp Development

Lead Time & Shipping

ParameterDetails
Dispatch BasisProcessed based on order type and quantity
Bulk Orders25–30 business days after payment
Sample / Small Orders1–5 business days after payment
Possible DelaysMay vary due to order volume or material availability; updates will be shared
Expedited OptionsAvailable on request with additional charges
Custom OrdersLonger lead time; timeline shared upon order confirmation

Warranty

ParameterDetails
Warranty Period1 Year from date of delivery
CoverageManufacturing defects only
Service TypeReplacement of defective parts after technical verification
Refund PolicyNo refunds or full product replacement

Warranty Exclusions

Conditions Not Covered
Misuse or improper handling
Physical damage, water or fire damage
Electrical damage due to incorrect connections
Tampering, modification, or unauthorized repair
Use of chemicals or improper installation
