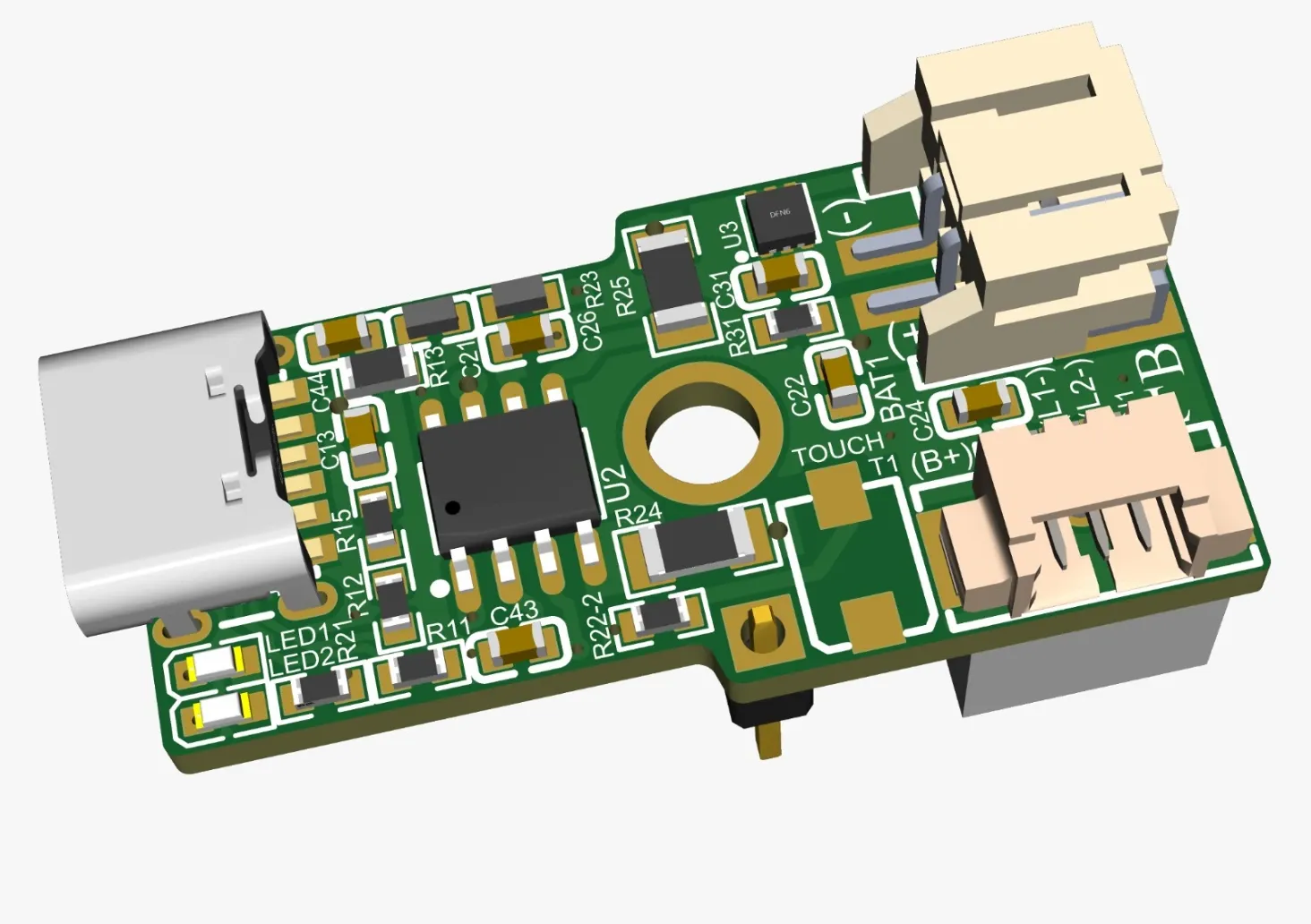

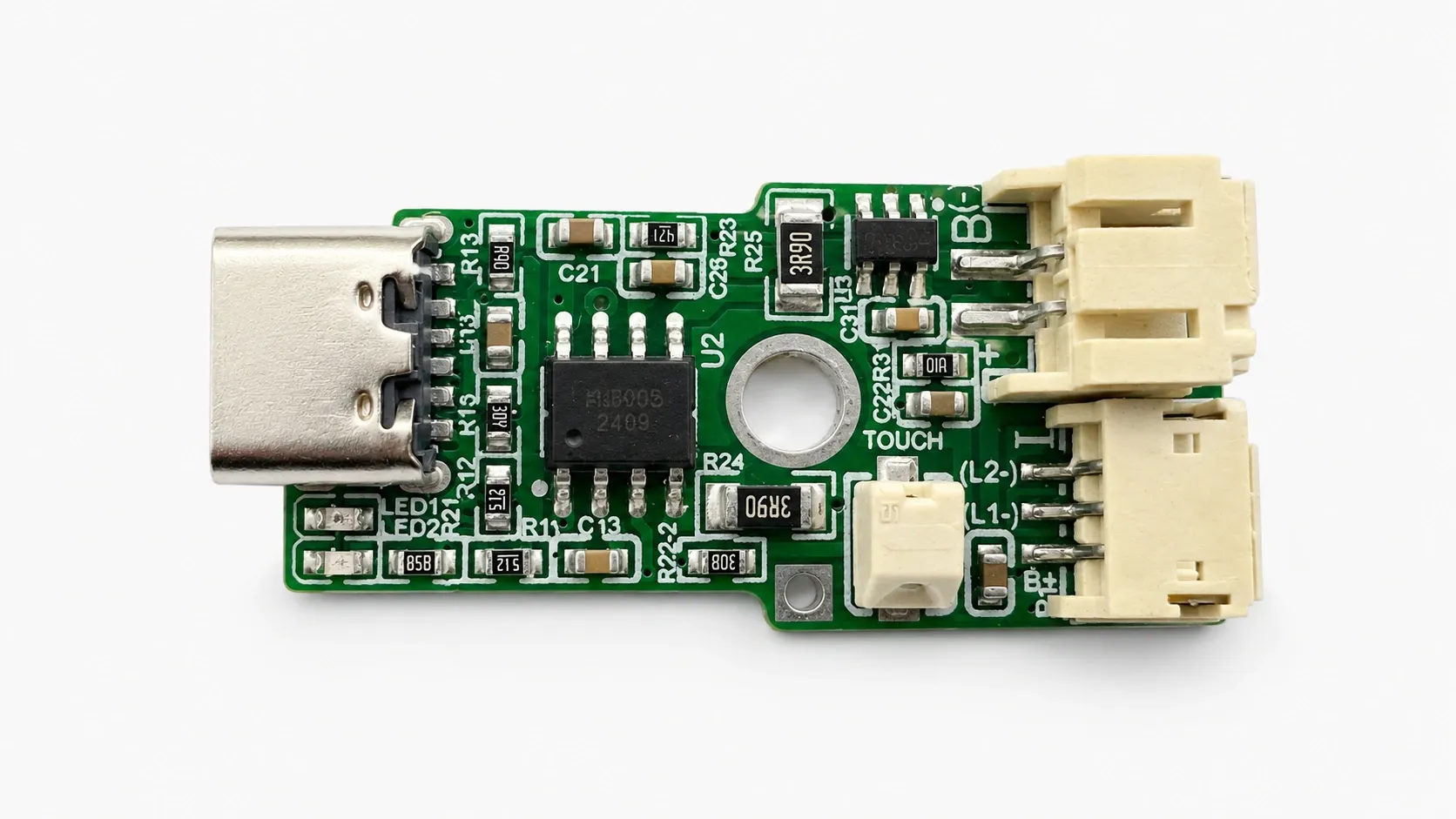

[AS-B-202-DLD-LC] DRIVER - 202 LC Rechargeable 3 Color

[AS-B-202-DLD-LC] DRIVER - 202 LC Rechargeable 3 Color

(0 review)
Availability: In Stock

1. Model: AS-B-202-DLD-LC LED Driver Module
2. Input: 5V DC (USB)
3. Battery Support: 3.7V Li-ion (18650 Compatible)
4. Output: Dual LED Output (3-Color / CCT)
5. Battery Connector: 2-Pin JST Connector
6. LED Connector: 3-Pin 1.5mm Pitch (ZH Compatible)
7. Control: LED1 / LED2 / Both / OFF (Touch)
8. Dimming: Basic Continuous Dimming
9. Charging: Integrated USB Charging
10. Application: Budget Lamps, DIY Lighting, Decorative Lighting
Brand: Smart Handicrafts®


Add to cart
Buy now
Price
₹ 69.00 ₹ 69.00 (Excl. GST)



Shipping: For Samples : 2-3 Business Days

Have a bulk order?

Click here

Need Support?

Click here

Warranty
Contact Us

Easy returns

Free 30-day returns with quick refunds or easy exchanges and no stress.

Free shipping

Enjoy fast, free shipping on all orders, no minimum, no hidden fees.

Secure payment

Your information is protected with encrypted checkout and trusted payment methods.

Quality assured

Every product is carefully tested to meet high standards of durability and performance.

Product Description

ParameterDetails
OverviewCost-optimized rechargeable 3-color touch dimmable LED driver with compact dual-connector design
Operating SystemWorks on 3.7V Li-ion battery with 5V USB charging input
UsageSuitable for budget lighting, DIY lamps, and decorative applications
LED CompatibilitySupports dual LED (3-color / CCT) up to 5W
Battery Connector2-Pin JST Connector for battery input
LED Connector3-Pin 1.5mm Pitch Compact Connector (ZH Compatible) for LED output
ApplicationsTable lamps, handicraft lighting, portable and low-cost lighting products

Features

FeatureDetails
Touch ControlShort touch: LED1 / LED2 / Both / OFF
DimmingBasic continuous dimming
Battery SupportCompatible with 18650 Li-ion battery
ChargingUSB input charging support
Output ModeDual channel (Warm / Cool / Combined)
Connector SystemDual connector layout for battery and LED outputs
DesignCompact PCB for easy integration
InstallationPlug-and-play module
Cost OptimizationDesigned for value-focused applications

Application

CategoryDetails
Primary UseBudget lamps, decorative lighting, DIY projects

Package Includes

ItemDetails
Included1 x Rechargeable 3-Color LED Driver (LC Version)

Specifications

ParameterDetails
ModelAS-B-202-DLD-LC
Input Voltage5V DC (USB)
Battery Type3.7V Li-ion (18650 Compatible)
Output TypeDual LED Output (CCT)
Output PowerUp to 5W
Control MethodCapacitive Touch
Operating ModesLED1 / LED2 / Both / OFF
DimmingBasic Continuous Dimming
Charging SupportUSB Charging (Integrated)
Battery Connector2-Pin JST Connector
LED Connector3-Pin 1.5mm Pitch Compact Connector (ZH Compatible)
Design TypeCompact PCB Module
ApplicationBudget Lamps, DIY Lighting, Decorative Lighting

Lead Time & Shipping

ParameterDetails
Dispatch BasisProcessed based on order type and quantity
Bulk Orders25–30 business days after payment
Sample / Small Orders1–5 business days after payment
Possible DelaysMay vary due to order volume or material availability; updates will be shared
Expedited OptionsAvailable on request with additional charges
Custom OrdersLonger lead time; timeline shared upon order confirmation

Warranty

ParameterDetails
Warranty Period1 Year from date of delivery
CoverageManufacturing defects only
Service TypeReplacement of defective parts after technical verification
Refund PolicyNo refunds or full product replacement

Warranty Exclusions

Conditions Not Covered
Misuse or improper handling
Physical damage, water or fire damage
Electrical damage due to incorrect connections
Tampering, modification, or unauthorized repair
Use of chemicals or improper installation
