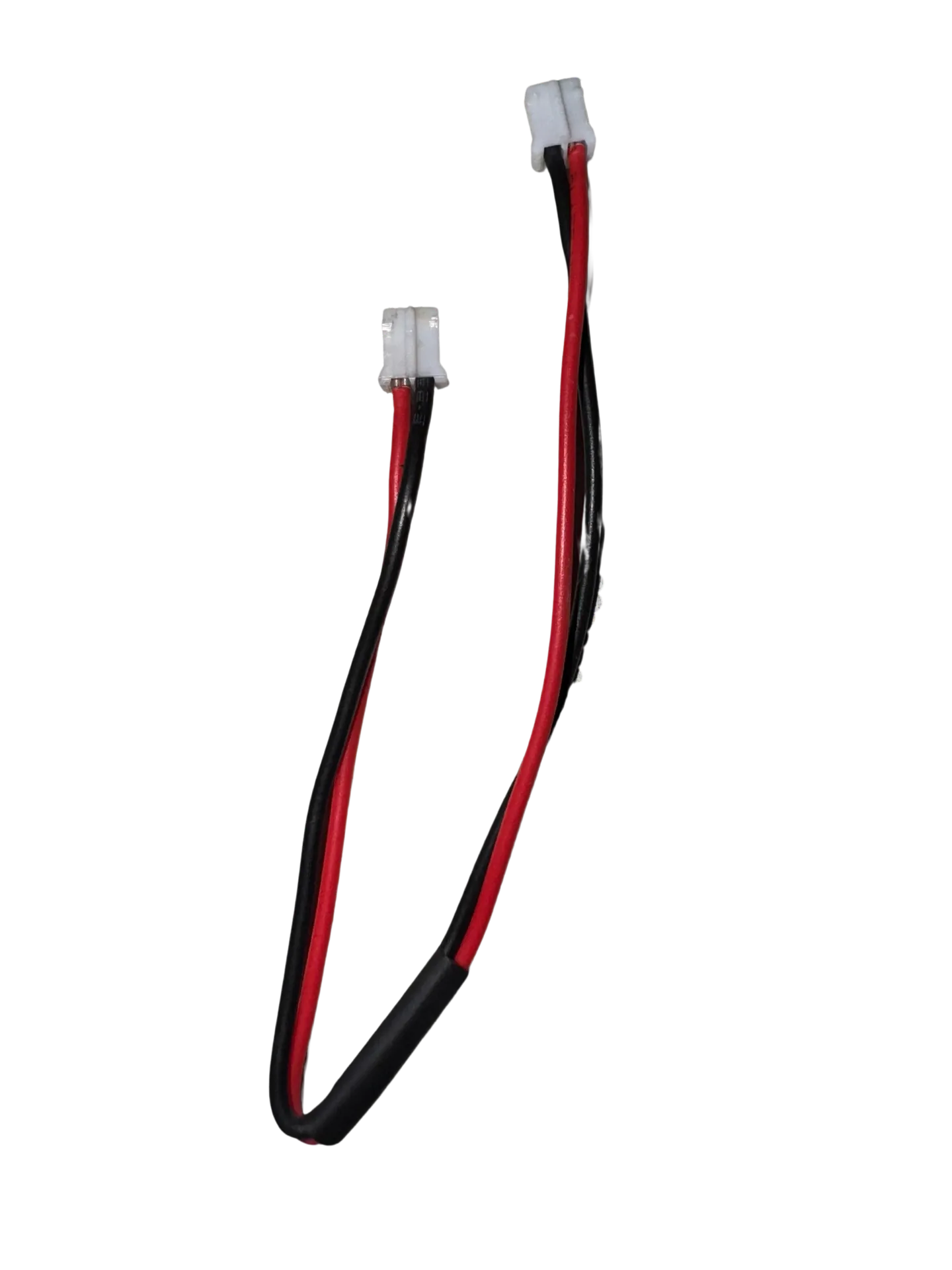

JST Wire - Dual 20cm (8") is a connector lead for compatible low-voltage LED drivers, battery connections and lighting assemblies. Match its connector format and polarity with your board before use.
Product Description
| Parameter | Details |
|---|---|
| Product | JST Wire - Dual 20cm (8") |
| Product Category | JST connector lead |
| Brand | Smart Handicrafts® |
| Model / SKU | SH-JST-20CM |
Features
| Feature | Details |
|---|---|
| Wiring format | Dual-ended connector lead |
| Assembly use | Connect compatible low-voltage boards, lighting modules or battery accessories |
| Variant selection | Order the connector style, length and pin arrangement to suit the target module |
Technical Specifications
| Parameter | Details |
|---|---|
| Connector family | JST-style wiring lead |
| Connector ends | Dual-ended connector lead |
| Length | 20 cm |
| Pin count | Confirm pin count for selected connector |
| Pin pitch | Confirm actual pitch for selected connector |
| Wire gauge | Confirm for the selected option |
Lead Time & Shipping
| Parameter | Details |
|---|---|
| Dispatch | Based on order quantity, available stock and any customisation; confirm at order acceptance. |
| Sample and bulk orders | Sample and bulk lead times are confirmed with your quotation or order. |
| Shipping | Method, charges and estimated transit time depend on the destination and chosen service. |
Warranty & Support
| Parameter | Details |
|---|---|
| Warranty applicability | Applicable warranty terms are provided with the confirmed order and depend on product category and supply conditions. Please request details if required. |
| Order assistance | For order issues or manufacturing-defect queries, contact care@smarthandicrafts.com and provide your order reference. |
| Installation-related damage | Electrical compatibility and installation must be checked before assembly; incorrect connections may damage components. |
Compatibility & Use
| Check | Guidance |
|---|---|
| Connector matching | A matching plastic housing alone does not establish a matching pitch; check pin spacing |
| Polarity / pinout | Verify wire order, PCB pin 1 and polarity before connecting |
| Length selection | Choose a lead length with adequate service slack; lengths are nominal listing sizes |
| Electrical loading | Confirm wire and connector current rating with the actual assembly |
Frequently Asked Questions
| Question | Answer |
|---|---|
| Is this a universal JST connector? | No. JST connectors exist in different series and pitches. Confirm exact mating pitch and pin assignment. |
| Can I change the connector length? | The catalogue notes custom lengths for the JST-wire family; confirm availability for this variant. |
| Does this fit my driver? | Fit depends on connector pitch, wire order and pin count. Check your driver header. |
