[AS-B-202-DLD-LC] DRIVER - 202 LC Rechargeable 3 Color

​ ​ ​ ​ ​ (0 review)
Availability: In Stock

1. Model: AS-B-202-DLD-LC LED Driver Module
2. Input: 5V DC (USB)
3. Battery Support: 3.7V Li-ion (18650 Compatible)
4. Output: Dual LED Output (3-Color / CCT)
5. Battery Connector: 2-Pin JST Connector
6. LED Connector: 3-Pin 1.5mm Pitch (ZH Compatible)
7. Control: LED1 / LED2 / Both / OFF (Touch)
8. Dimming: Basic Continuous Dimming
9. Charging: Integrated USB Charging
10. Application: Budget Lamps, DIY Lighting, Decorative Lighting
Brand: Smart Handicrafts®


Add to cart
Buy now
Price
₹ 69.00 ₹ 69.00 (Excl. GST)



Shipping: For Samples : 2-3 Business Days

Have a bulk order?

Click here

Need Support?

Click here

Warranty
Contact Us

Product Description

ParameterDetails
OverviewCost-optimized rechargeable 3-color touch dimmable LED driver with compact dual-connector design
Operating SystemWorks on 3.7V Li-ion battery with 5V USB charging input
UsageSuitable for budget lighting, DIY lamps, and decorative applications
LED CompatibilitySupports dual LED (3-color / CCT) up to 5W
Battery Connector2-Pin JST Connector for battery input
LED Connector3-Pin 1.5mm Pitch Compact Connector (ZH Compatible) for LED output
ApplicationsTable lamps, handicraft lighting, portable and low-cost lighting products

Features

FeatureDetails
Touch ControlShort touch: LED1 / LED2 / Both / OFF
DimmingBasic continuous dimming
Battery SupportCompatible with 18650 Li-ion battery
ChargingUSB input charging support
Output ModeDual channel (Warm / Cool / Combined)
Connector SystemDual connector layout for battery and LED outputs
DesignCompact PCB for easy integration
InstallationPlug-and-play module
Cost OptimizationDesigned for value-focused applications

Application

CategoryDetails
Primary UseBudget lamps, decorative lighting, DIY projects

Package Includes

ItemDetails
Included1 x Rechargeable 3-Color LED Driver (LC Version)

Specifications

ParameterDetails
ModelAS-B-202-DLD-LC
Input Voltage5V DC (USB)
Battery Type3.7V Li-ion (18650 Compatible)
Output TypeDual LED Output (CCT)
Output PowerUp to 5W
Control MethodCapacitive Touch
Operating ModesLED1 / LED2 / Both / OFF
DimmingBasic Continuous Dimming
Charging SupportUSB Charging (Integrated)
Battery Connector2-Pin JST Connector
LED Connector3-Pin 1.5mm Pitch Compact Connector (ZH Compatible)
Design TypeCompact PCB Module
ApplicationBudget Lamps, DIY Lighting, Decorative Lighting

Lead Time & Shipping

ParameterDetails
Dispatch BasisProcessed based on order type and quantity
Bulk Orders25–30 business days after payment
Sample / Small Orders1–5 business days after payment
Possible DelaysMay vary due to order volume or material availability; updates will be shared
Expedited OptionsAvailable on request with additional charges
Custom OrdersLonger lead time; timeline shared upon order confirmation

Warranty

ParameterDetails
Warranty Period1 Year from date of delivery
CoverageManufacturing defects only
Service TypeReplacement of defective parts after technical verification
Refund PolicyNo refunds or full product replacement

Warranty Exclusions

Conditions Not Covered
Misuse or improper handling
Physical damage, water or fire damage
Electrical damage due to incorrect connections
Tampering, modification, or unauthorized repair
Use of chemicals or improper installation


Request Certification & Technical Documents


To maintain compliance control and document integrity, technical datasheets and certifications are shared upon request. Please complete the form below. Our team will review and grant access accordingly.


Request Acess




Smart Handicrafts® 202 LC Driver
Loading 202 LC driver 3D model...

Rechargeable Lamp Electronics

202 LC Driver

Rechargeable 3 color LED driver for wireless table lamps and decorative lighting.

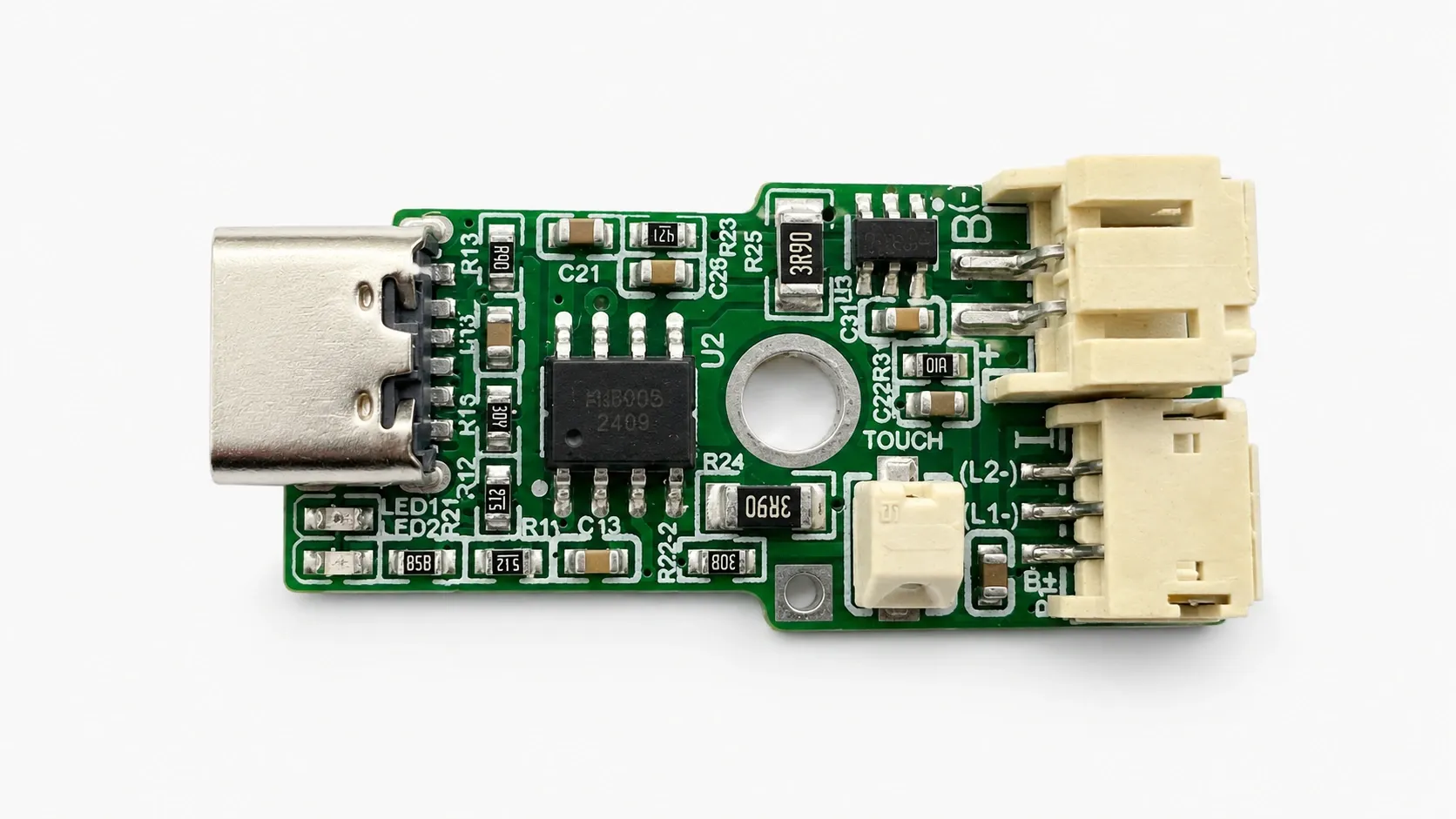

Top View

Single color PCB layout

View the compact 3 color board layout, touch input section, charging circuit and LED output paths clearly.

Connector View

Ready for lamp wiring

USB-C input, battery connection and 3 color LED output are positioned for practical lamp-base installation.

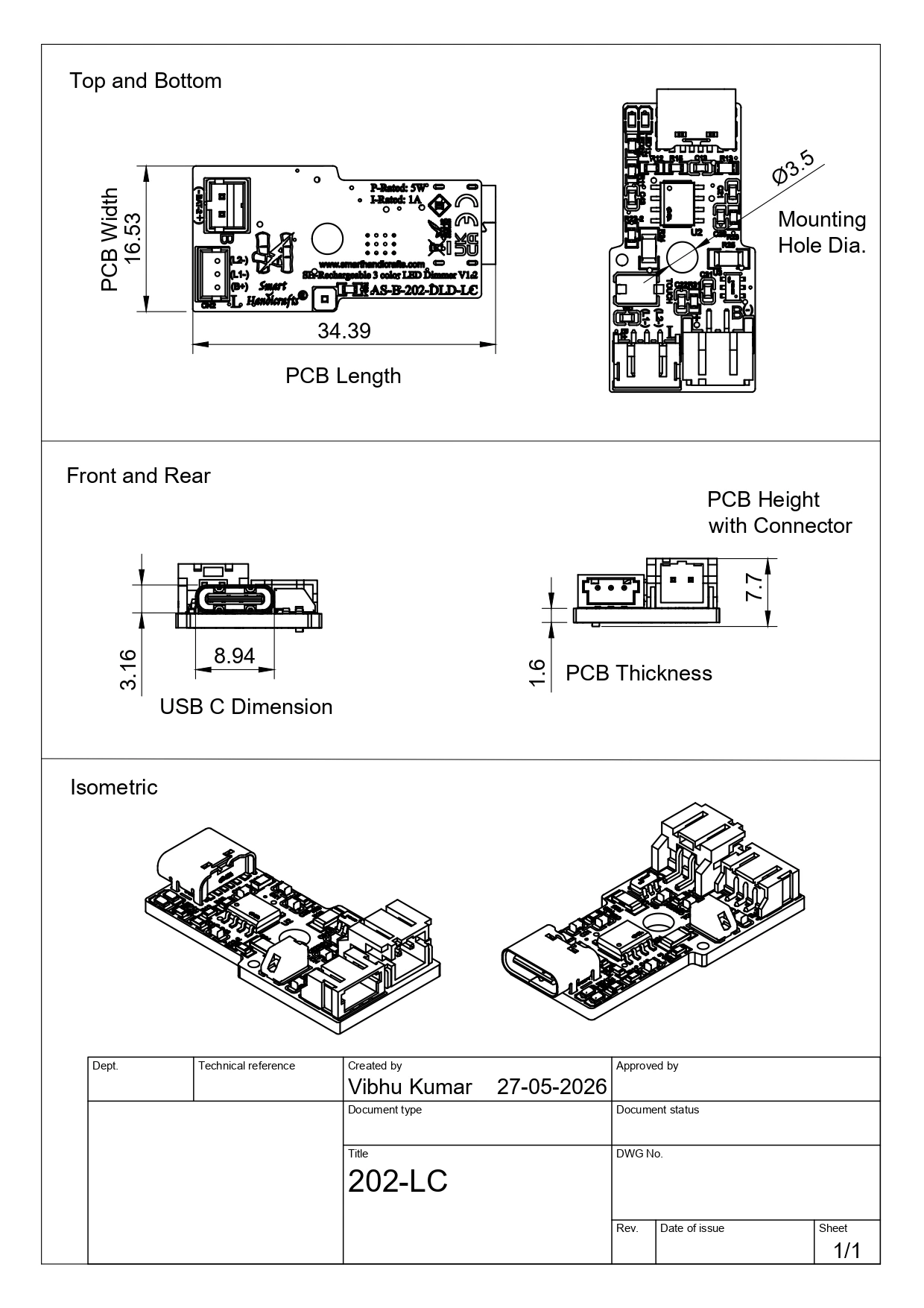

Fitment View

Made for compact bases

Check board height, connector direction and fitting clearance before placing it inside rechargeable lamp bodies.

Smart Handicrafts Integration

From driver to finished lamp.

Pair the 202 LC driver with a compatible 3 color COB LED, 18650 battery and touch hardware to build a rechargeable lamp system.

Open Kit Builder Ask Integration Help
USB-C Touch 3 Color Rechargeable
