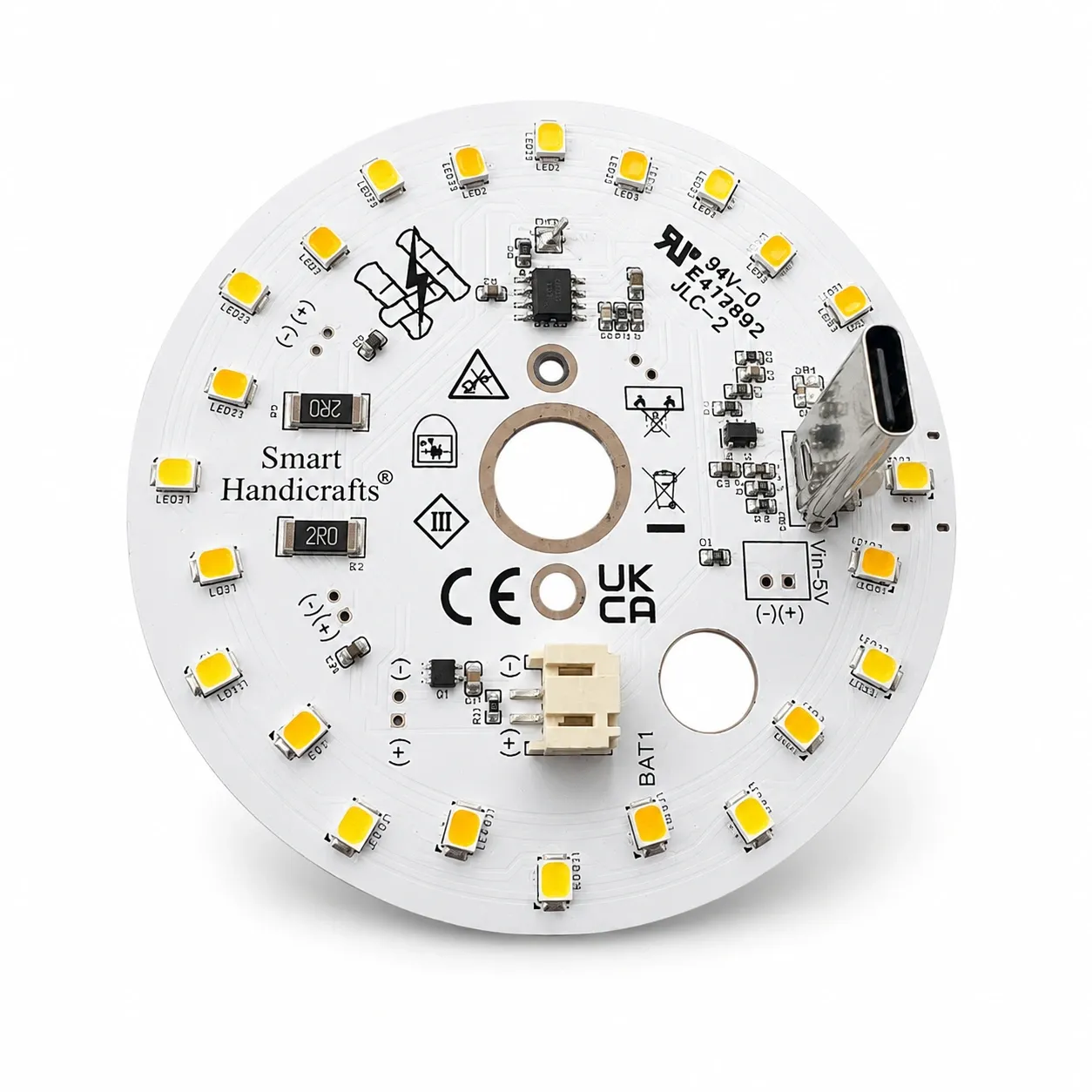

DRIVER - 206 Rechargeable 3 Color DOB (75mm)

​ ​ ​ ​ ​ (0 review)
Availability: In Stock

1. Model: SH-DOB-206-75-DLD
2. Input: 5V DC (USB-C, 1A Max)
3. Battery Support: 3.7V Li-ion
4. Output: Dual Channel LED Output (2.4W + 2.4W)
5. Control: LED1 / LED2 / Both / OFF (Touch)
6. Dimming: 10%–100% Touch Dimming
7. Indicators: Red (Charging), Green (Charged)
8. Features: Brightness Memory, Battery BMS, Soft-start
9. Protection: Overcharge, Over-discharge, Reverse Battery, ESD & Surge Protection
10. Application: Top Touch Lamps, Floor Lamps, Table Lamps, OEM Products
Brand: Smart Handicrafts®


Add to cart
Buy now
Price
₹ 299.00 ₹ 299.00 (Excl. GST)



Shipping: For Samples : 2-3 Business Days

Have a bulk order?

Click here

Need Support?

Click here

Warranty
Contact Us



Interactive 75mm DOB View
Loading 3D model...
Drag to rotate • Scroll to zoom


Visualize Driver Integration in 3D


Use the interactive 3D model to understand the size, connector placement, USB-C charging position, battery input, and LED output layout before integration. This helps your team plan mounting, wiring, and assembly for rechargeable wireless lamps.

Discuss Your Lamp Integration

Product Description

ParameterDetails
Overview75mm rechargeable 3-color LED DOB driver with integrated Driver-on-Board design
Operating SystemWorks on 3.7V Li-ion battery with 5V USB-C charging input
UsageSuitable for larger diameter lamp designs and professional lighting products
LED CompatibilityIntegrated dual LED output (Cool White + Warm White, 3-color operation)
Output PowerApprox. 2.4W + 2.4W (Dual Channel)
DimmingTouch-controlled dimming (10%–100%)
Switching Mode4-stage operation (LED1 / LED2 / Both / OFF)
Design TypeDriver-On-Board (DOB) circular PCB (75mm)
Applications

Top Touch Lamps, Floor Lamps, Table Lamps, OEM Products

Features

FeatureDetails
Touch ControlMulti-stage touch switching with dimming
3 Color OutputSupports Cool White, Warm White, and Combined modes
Brightness MemoryRemembers last brightness level
Battery BMSIntegrated battery management system
Charging SystemCC/CV charging with auto cut-off
IndicatorsCharging (Red LED) / Charged (Green LED)
ProtectionOvercharge, over-discharge, reverse battery, surge & thermal protection
Soft StartLimits inrush current for stable operation
DesignCompact circular PCB for direct lamp integration

Application

CategoryDetails
Primary UseTable lamps, designer lamps, decorative lighting, export-grade lighting

Package Includes

ItemDetails
Included1 x 75mm Rechargeable 3-Color LED DOB Driver Module
ParameterDetails
ModelSH-DOB-206-75-DLD
Input Voltage5V DC (USB-C)
Input CurrentUp to 1A
Battery Type3.7V Li-ion
Output TypeDual Channel LED Output (CCT)
Output Power2.4W + 2.4W
Dimming Range10% – 100% (Touch Control)
Control MethodCapacitive Touch
Operating ModesLED1 / LED2 / Both / OFF
Charging TypeCC / CV / CT Charging
Battery ManagementIntegrated BMS
Charging IndicatorsRed (Charging), Green (Fully Charged)
Protection FeaturesOvercharge, Over-discharge, Reverse Battery
Safety FeaturesESD Protection, Surge Protection, Thermal Cut-off
Special FeaturesSoft-start, Brightness Memory
Design TypeDriver-On-Board (DOB), Circular PCB (75mm)
ApplicationTable Lamps, Decorative Lighting, OEM Products

Lead Time & Shipping

ParameterDetails
Dispatch BasisProcessed based on order type and quantity
Bulk Orders25–30 business days after payment
Sample / Small Orders1–5 business days after payment
Possible DelaysMay vary due to order volume or material availability; updates will be shared
Expedited OptionsAvailable on request with additional charges
Custom OrdersLonger lead time; timeline shared upon order confirmation

Warranty

ParameterDetails
Warranty Period1 Year from date of delivery
CoverageManufacturing defects only
Service TypeReplacement of defective parts after technical verification
Refund PolicyNo refunds or full product replacement

Warranty Exclusions

Conditions Not Covered
Misuse or improper handling
Physical damage, water or fire damage
Electrical damage due to incorrect connections
Tampering, modification, or unauthorized repair
Use of chemicals or improper installation


Request Certification & Technical Documents


To maintain compliance control and document integrity, technical datasheets and certifications are shared upon request. Please complete the form below. Our team will review and grant access accordingly.


Request Acess



Smart Handicrafts® 75mm DOB Driver
Loading 75mm DOB driver 3D model...

Rechargeable Lamp Electronics

75mm DOB Driver

Rechargeable 3 color 75mm DOB driver for decorative lighting and integrated lamp applications.

Top View

75mm DOB layout

View the 75mm DOB layout, LED placement, charging section and 3 color output path clearly.

Connector View

Ready for integration

See the connector and output placement designed for practical rechargeable lamp integration.

Fitment View

Made for compact DOB fitment

Check the compact round board form, connector direction and fitting clearance before placing it into compatible lamp bodies.

Smart Handicrafts Integration

From driver to finished lamp.

Pair the 75mm DOB driver with a compatible single color COB LED, 18650 battery and touch hardware to build a rechargeable lamp system.
