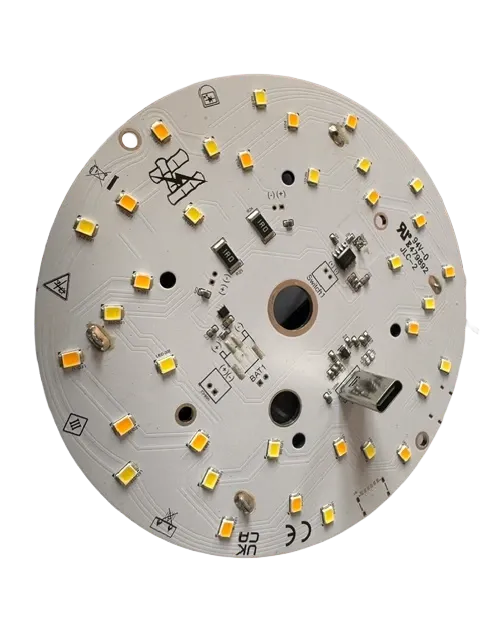

DRIVER - 206 Rechargeable 3 Color DOB (115mm)

(0 review)
Availability: In Stock

1. Model: SH-DOB-206-115-DLD
2. Input: 5V DC (USB-C)
3. Battery Support: 3.7V Li-ion (Dual Holder Compatible)
4. Output: Dual Channel LED Output (Wide Range)
5. Control: LED1 / LED2 / Both / OFF (Touch)
6. Dimming: 0%–100% Touch Dimming
7. Indicators: Red (Charging), Green (Charged)
8. Features: Brightness Memory, Battery BMS, Soft-start
9. Protection: Overcharge, Over-discharge, Reverse Battery, ESD & Surge Protection
10. Application: Floor Lamps, Large Lamps, Decorative Lighting, OEM Products
Brand: Smart Handicrafts®


Add to cart
Buy now
Price
₹ 349.00 ₹ 349.00 (Excl. GST)



Shipping: For Samples : 2-3 Business Days

Have a bulk order?

Click here

Need Support?

Click here

Warranty
Contact Us

Easy returns

Free 30-day returns with quick refunds or easy exchanges and no stress.

Free shipping

Enjoy fast, free shipping on all orders, no minimum, no hidden fees.

Secure payment

Your information is protected with encrypted checkout and trusted payment methods.

Quality assured

Every product is carefully tested to meet high standards of durability and performance.

Product Description

ParameterDetails
Overview115mm rechargeable 3-color LED DOB driver with integrated Driver-on-Board design for large lighting applications
Operating SystemWorks on 3.7V Li-ion battery with 5V USB-C charging input
UsageDesigned for large diameter lamps and high-output lighting assemblies
LED CompatibilityIntegrated dual LED output (Cool White + Warm White, 3-color operation)
Output PowerWide output range suitable for high brightness LED configurations
DimmingTouch-controlled dimming (0%–100%)
Switching Mode4-stage operation (LED1 / LED2 / Both / OFF)
Battery SupportSupports external battery connection and onboard dual battery holder pads
Design TypeDriver-On-Board (DOB) circular PCB (115mm)
ApplicationsTable lamps, designer lamps, decorative lighting, OEM lighting systems

Features

FeatureDetails
Touch ControlMulti-stage touch switching with dimming
3 Color OutputSupports Cool White, Warm White, and Combined modes
Brightness MemoryRemembers last brightness setting
Battery BMSIntegrated battery management system
Charging SystemCC/CV charging with auto cut-off
IndicatorsCharging (Red LED) / Charged (Green LED)
Battery FlexibilityDedicated pads for dual 18650 battery holders
ProtectionOvercharge, over-discharge, reverse battery, surge & thermal protection
Soft StartLimits inrush current for stable operation
DesignLarge circular PCB for high-power and uniform illumination

Application

CategoryDetails
Primary UseLarge lamps, decorative lighting, export-grade lighting, OEM assemblies

Package Includes

ItemDetails
Included1 x 115mm Rechargeable 3-Color LED DOB Driver Module

Specifications

ParameterDetails
ModelSH-DOB-206-115-DLD
Input Voltage5V DC (USB-C)
Battery Type3.7V Li-ion
Output TypeDual Channel LED Output (CCT)
Output RangeApprox. 2.2V – 18V
Dimming Range0% – 100% (Touch Control)
Control MethodCapacitive Touch
Operating ModesLED1 / LED2 / Both / OFF
Charging TypeCC / CV / CT Charging
Battery ManagementIntegrated BMS
Charging IndicatorsRed (Charging), Green (Fully Charged)
Battery SupportExternal Battery + Dual Battery Holder Pads
Protection FeaturesOvercharge, Over-discharge, Reverse Battery
Safety FeaturesESD Protection, Surge Protection, Thermal Cut-off
Design TypeDriver-On-Board (DOB), Circular PCB (115mm)

Lead Time & Shipping

ParameterDetails
Dispatch BasisProcessed based on order type and quantity
Bulk Orders25–30 business days after payment
Sample / Small Orders1–5 business days after payment
Possible DelaysMay vary due to order volume or material availability; updates will be shared
Expedited OptionsAvailable on request with additional charges
Custom OrdersLonger lead time; timeline shared upon order confirmation

Warranty

ParameterDetails
Warranty Period1 Year from date of delivery
CoverageManufacturing defects only
Service TypeReplacement of defective parts after technical verification
Refund PolicyNo refunds or full product replacement

Warranty Exclusions

Conditions Not Covered
Misuse or improper handling
Physical damage, water or fire damage
Electrical damage due to incorrect connections
Tampering, modification, or unauthorized repair
Use of chemicals or improper installation
