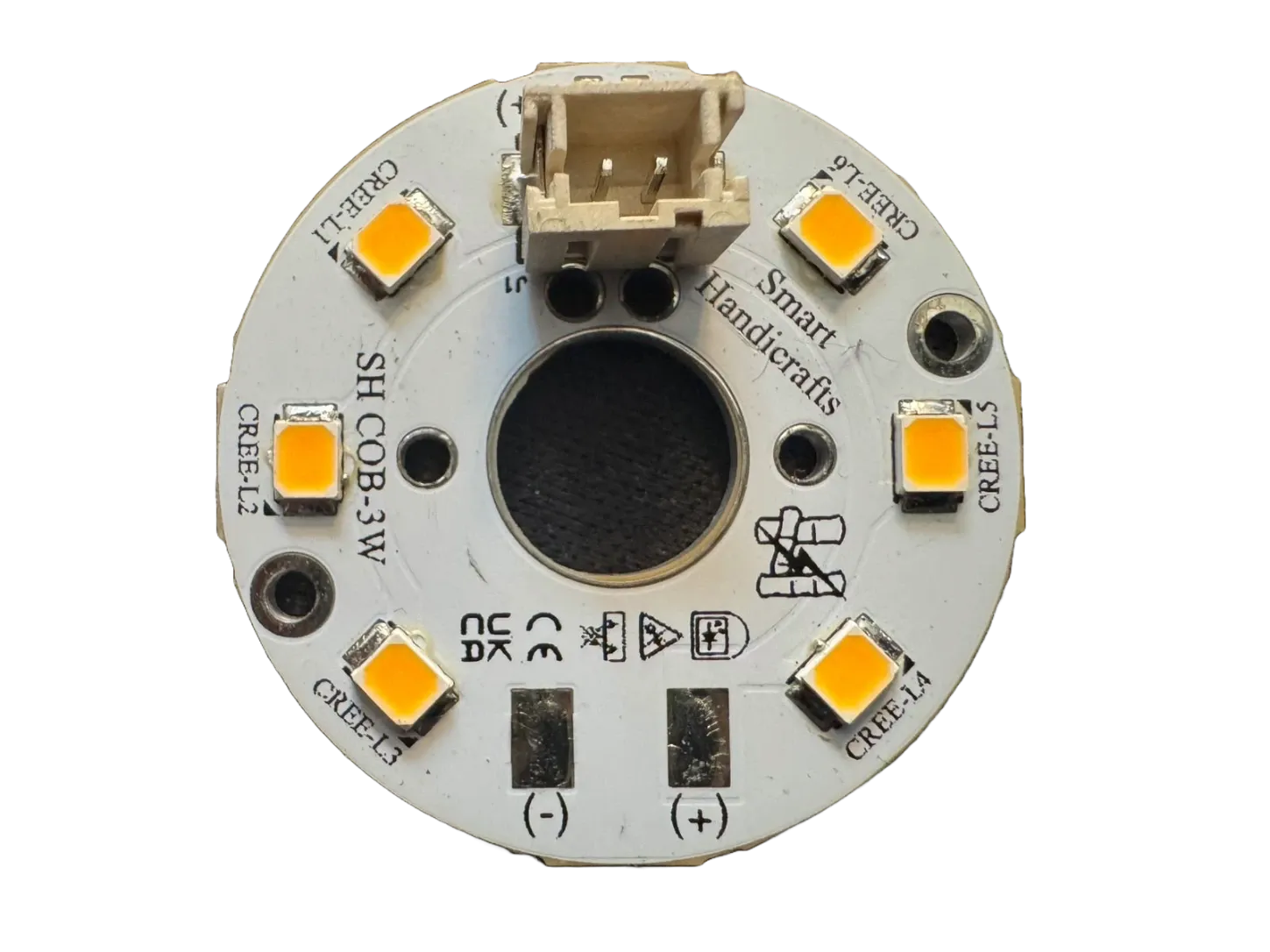

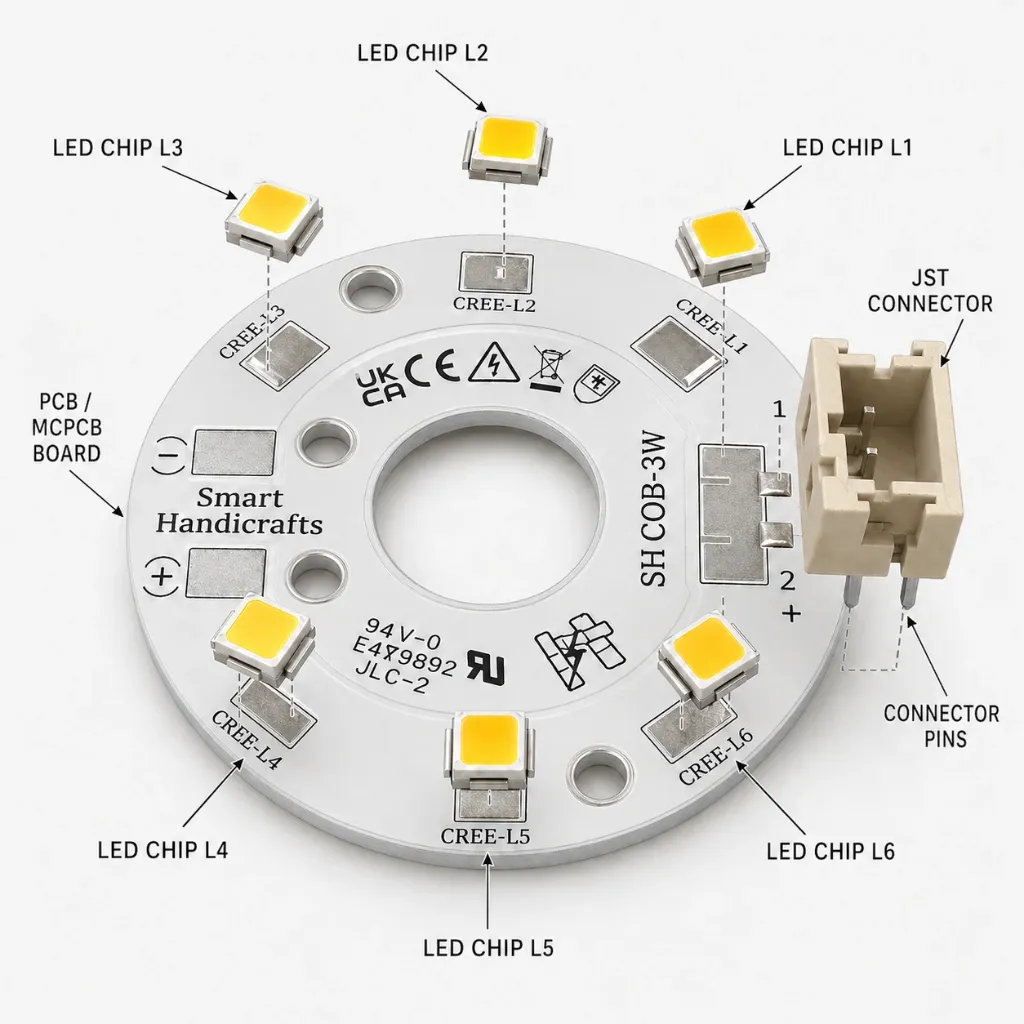

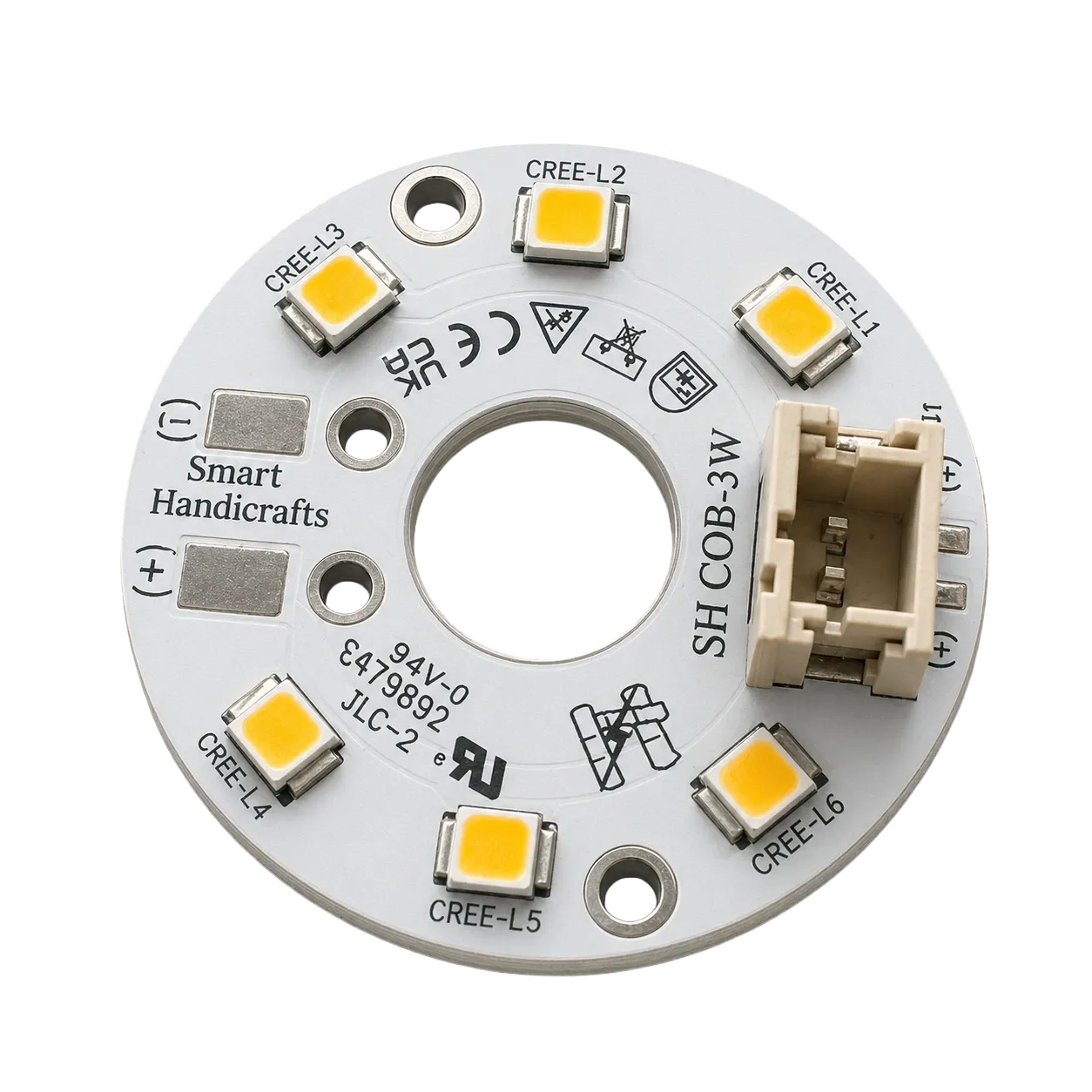

LED - CREE COB 3W

(0 review)
Availability: In Stock

1. Model: SH COB-3W LED Module
2. Power: 3W
3. Input Voltage: 3V DC
4. Operating Current: Approx. 720mA
5. LED Type: COB LED Module
6. Mounting: M2 Screw Mount / 10mm Center Hole
7. Connector: JST 2.0mm / Wire Terminal
8. Application: Table Lamps, Decorative Lighting, DIY Projects
Brand: Smart Handicrafts®


Add to cart
Buy now
Price
₹ 60.00 ₹ 60.00 (Excl. GST)



Shipping: For Samples : 2-3 Business Days

Have a bulk order?

Click here

Need Support?

Click here

Warranty
Contact Us

Easy returns

Free 30-day returns with quick refunds or easy exchanges and no stress.

Free shipping

Enjoy fast, free shipping on all orders, no minimum, no hidden fees.

Secure payment

Your information is protected with encrypted checkout and trusted payment methods.

Quality assured

Every product is carefully tested to meet high standards of durability and performance.

Product Description

ParameterDetails
OverviewHigh efficiency 3W LED COB module for compact lighting applications
Operating Voltage3V DC
Power Rating3W
UsageSuitable for lamps, decorative lighting, and DIY LED projects
LED TypeCOB (Chip on Board)
ApplicationsTable lamps, handicraft lighting, spot lighting, portable lighting

Features

FeatureDetails
LED ChipHigh power LED chip (CREE J-Series equivalent)
EfficiencyHigh luminous efficiency (~138 lm/W)
Light OutputWhite light, CRI 80+, 5635 size LEDs
MountingM2 screw mount / center hole (10mm thread support)
ConnectorJST connector (2.0mm pitch) or wire terminals
Build QualityDurable aluminum base for heat dissipation
CustomizationWire length and connector configurable

Application

CategoryDetails
Primary UseTable lamps, decorative lighting, spot lighting, DIY LED modules

Package Includes

ItemDetails
Included1 x 3W LED COB Module

Specifications

ParameterDetails
ModelSH COB-3W
LED TypeCOB (Chip on Board)
Power Rating3W
Operating Voltage3V DC
Operating Current~720mA
Luminous EfficiencyUp to ~138 lm/W
Color TemperatureWhite (3000K / Custom Options)
CRI≥80
LED ChipHigh Power LED Chip (CREE J-Series Equivalent)
Mounting TypeM2 Screw Mount / Center Hole (10mm Thread)
Connector TypeJST Connector (2.0mm Pitch) / Wire Terminals
Base MaterialAluminum (for heat dissipation)
Risk ClassificationRisk Group 2
CertificationsCE, UKCA
ApplicationTable Lamps, Decorative Lighting, DIY Projects

Lead Time & Shipping

ParameterDetails
Dispatch BasisProcessed based on order type and quantity
Bulk Orders25–30 business days after payment
Sample / Small Orders1–5 business days after payment
Possible DelaysMay vary due to order volume or material availability; updates will be shared
Expedited OptionsAvailable on request with additional charges
Custom OrdersLonger lead time; timeline shared upon order confirmation

Warranty

ParameterDetails
Warranty Period1 Year from date of delivery
CoverageManufacturing defects only
Service TypeReplacement of defective parts after technical verification
Refund PolicyNo refunds or full product replacement

Warranty Exclusions

Conditions Not Covered
Misuse or improper handling
Physical damage, water or fire damage
Electrical damage due to incorrect connections
Tampering, modification, or unauthorized repair
Use of chemicals or improper installation
