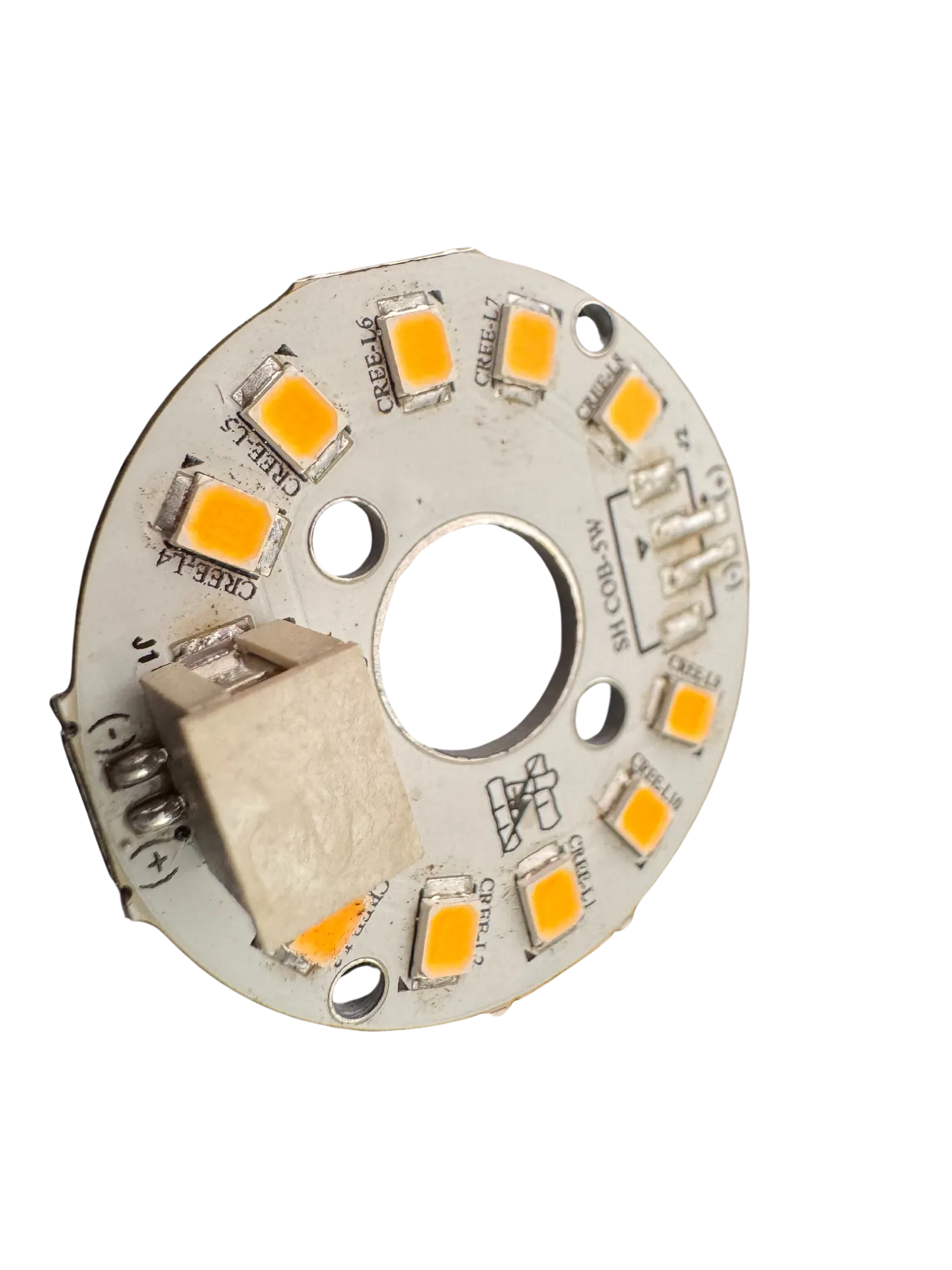

LED - CREE COB 5W

LED - CREE COB 5W

​ ​ ​ ​ ​ (0 review)
Availability: In Stock

1. Model: SH COB-5W LED Module
2. Power: 5W
3. Input Voltage: 3V DC
4. Operating Current: Approx. 1.2A
5. LED Type: COB LED Module
6. Mounting: M2 Screw Mount / 10mm Center Hole
7. Connector: JST 2.0mm / Wire Terminal
8. Application: Table Lamps, Decorative Lighting, DIY Projects
Brand: Smart Handicrafts®


Add to cart
Buy now
Price
₹ 75.00 ₹ 75.00 (Excl. GST)



Shipping: For Samples : 2-3 Business Days

Have a bulk order?

Click here

Need Support?

Click here

Warranty
Contact Us



Interactive 5W CREE COB View
Loading 3D model...
Drag to rotate • Scroll to zoom


Visualize Driver Integration in 3D


Use the interactive 3D model to understand the size, connector placement, USB-C charging position, battery input, and LED output layout before integration. This helps your team plan mounting, wiring, and assembly for rechargeable wireless lamps.

Discuss Your Lamp Integration

Product Description

ParameterDetails
OverviewHigh efficiency 5W LED COB module for compact and high brightness lighting
Operating Voltage3V DC
Power Rating5W
UsageSuitable for lamps, decorative lighting, and DIY LED projects
LED TypeCOB (Chip on Board)
ApplicationsTable lamps, handicraft lighting, spot lighting, and decorative lighting

Features

FeatureDetails
LED ChipHigh power LED chip (CREE J-Series equivalent)
EfficiencyHigh luminous efficiency
Light OutputWhite light (~3000K), CRI ≥80
MountingM2 screw mount / center hole (10mm thread support)
ConnectorJST connector (2.0mm pitch) or wire terminals
Build QualityAluminum base for efficient heat dissipation
CustomizationWire length and connector configurable

Application

CategoryDetails
Primary UseTable lamps, decorative lighting, spot lighting, DIY LED modules

Package Includes

ItemDetails
Included1 x 5W LED COB Module

Specifications

ParameterDetails
ModelSH COB-5W
LED TypeCOB (Chip on Board)
Power Rating5W
Operating Voltage3V DC
Operating Current~1.2A
Color TemperatureWarm White (~3000K) / Custom Options
CRI≥80
LED ChipHigh Power LED Chip (CREE J-Series Equivalent)
Mounting TypeM2 Screw Mount / Center Hole (10mm Thread)
Connector TypeJST Connector (2.0mm Pitch) / Wire Terminals
Base MaterialAluminum (for heat dissipation)
Risk ClassificationRisk Group 2
CertificationsCE, UKCA
ApplicationTable Lamps, Decorative Lighting, DIY Projects

Lead Time & Shipping

ParameterDetails
Dispatch BasisProcessed based on order type and quantity
Bulk Orders25–30 business days after payment
Sample / Small Orders1–5 business days after payment
Possible DelaysMay vary due to order volume or material availability; updates will be shared
Expedited OptionsAvailable on request with additional charges
Custom OrdersLonger lead time; timeline shared upon order confirmation

Warranty

ParameterDetails
Warranty Period1 Year from date of delivery
CoverageManufacturing defects only
Service TypeReplacement of defective parts after technical verification
Refund PolicyNo refunds or full product replacement

Warranty Exclusions

Conditions Not Covered
Misuse or improper handling
Physical damage, water or fire damage
Electrical damage due to incorrect connections
Tampering, modification, or unauthorized repair
Use of chemicals or improper installation





Smart Handicrafts® 35mm 5W Single Color CREE LED COB
Loading 35mm 5W CREE COB 3D model...

Rechargeable Lamp Electronics

35mm 5W Single Color CREE LED COB

Rechargeable 3 color 35mm 5W CREE COB for decorative lighting and integrated lamp applications.

Top View

35mm COB LED layout

View the 35mm COB LED layout, LED placement, charging section and 3 color output path clearly.

Connector View

Ready for lamp fitting

Check the LED face, wiring pads and compact form made for small lamp fixtures.

Fitment View

Made for compact lamp fitment

Check the 35mm board size, LED surface direction and fitting clearance before placing it inside lamp holders.

Smart Handicrafts Integration

From driver to finished lamp.

Pair the 35mm 5W CREE COB with a compatible single color COB LED, 18650 battery and touch hardware to build a rechargeable lamp system.

Open Kit Builder Ask Integration Help
35 mm COB Single Color 5W CREE
