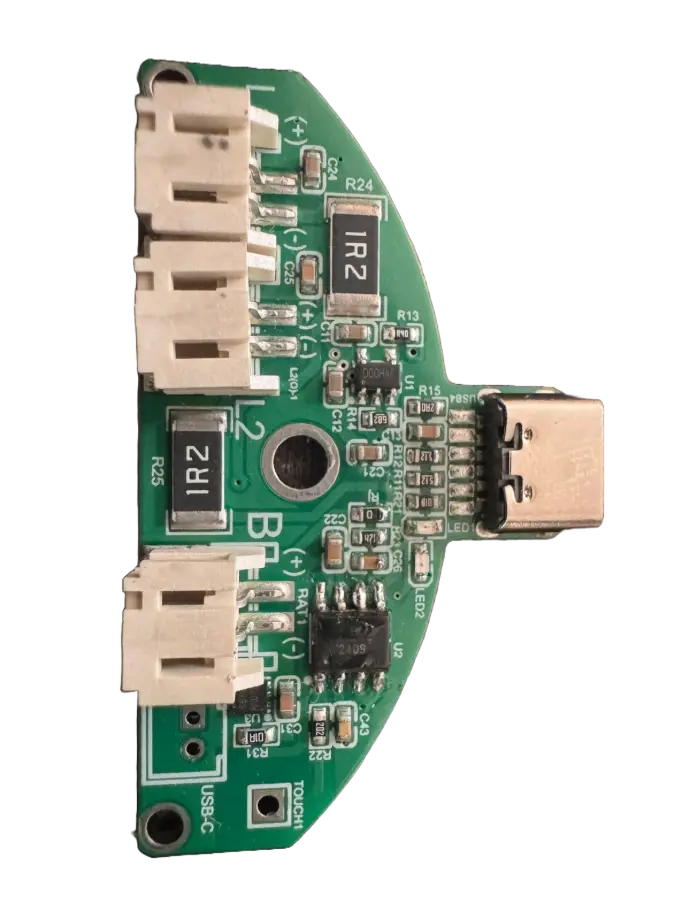

DRIVER- 202 DUAL LED DRIVER

DRIVER- 202 DUAL LED DRIVER

(0 review)
Availability: In Stock
For bulk orders or B2B inquiries: care@smarthandicrafts.com

1. Model: AS-B-202-DLD Rechargeable LED Driver Module
2. Input Voltage: 5V DC (USB Type-C, 1A Max)
3. Battery Support: Li-ion Battery Compatible
4. Output Type: Dual LED Output
5. Control Mode: ON1 / ON2 / ON(1+2) / OFF (Short Touch)
6. Dimming: Long Touch Continuous Dimming (0–100%)
7. Dimming Type: Triple Mode (LED1 / LED2 / Both)
8. Output Adjustment: Voltage (2.2V–18V), Current up to 1A per LED
9. Charging: Integrated CC/CV Charging with Auto Cut-off
10. Indicators: Red (Charging), Green (Charged), Blue (Working)
11. Special Features: Brightness Memory, Soft Start
12. Protection: Overcharge, Over-discharge, Reverse polarity, Short circuit, Thermal
13. Application: Dual-color Lamps, Decorative Lighting, DIY LED Projects

Brand: Smart Handicrafts®


Add to cart
Buy now
Price
₹ 250.00 ₹ 250.00 (Excl. GST)



Shipping: For Samples : 2-3 Business Days

Have a bulk order?

Click here

Need Support?

Click here

Warranty
Contact Us

Easy returns

Free 30-day returns with quick refunds or easy exchanges and no stress.

Free shipping

Enjoy fast, free shipping on all orders, no minimum, no hidden fees.

Secure payment

Your information is protected with encrypted checkout and trusted payment methods.

Quality assured

Every product is carefully tested to meet high standards of durability and performance.

Product Description

ParameterDetails
OverviewRechargeable Dual LED Touch Dimmable Driver for advanced wireless lighting applications
Operating SystemWorks on 5V USB Type-C input with Li-ion battery support
UsageSuitable for dual-color lamps, decorative lighting, and smart DIY lighting systems
LED CompatibilitySupports dual LED COB (1W–5W each), filament LEDs, and decorative lighting setups
ApplicationsTable lamps, dual-color lamps, handicraft lighting, portable and decorative lighting

Features

FeatureDetails
Touch ControlShort touch: ON1 / ON2 / ON(1+2) / OFF
DimmingLong touch continuous dimming (0–100%)
Dimming TypeTriple mode dimming (LED1 / LED2 / Both)
Battery SupportCompatible with Li-ion battery
ChargingIntegrated charging circuit (CC/CV with auto cut-off)
Output AdjustmentVoltage adjustable (2.2V–18V), current up to 1A per LED
IndicatorsRed: Charging, Green: Charged, Blue: Working
Special FeaturesBrightness memory, soft-start, intelligent brightness control
ProtectionOvercharge, over-discharge, reverse polarity, short circuit, thermal

Application

CategoryDetails
Primary UseDual-color lamps, table lamps, decorative lighting, DIY LED projects

Package Includes

ItemDetails
Included1 x Rechargeable Dual LED Driver Module (AS-B-202-DLD)

Specifications

ParameterDetails
ModelAS-B-202-DLD
Input Voltage5V DC (USB Type-C)
Max Input Current1A
Battery TypeLi-ion Battery Compatible
Output TypeDual LED Output
Output Voltage RangeAdjustable (2.2V – 18V)
Output CurrentUp to 1A per LED
Power Input5V @ 1A Max
Control MethodCapacitive Touch
Operating ModesON1 / ON2 / ON(1+2) / OFF
DimmingContinuous 0–100% (Long Touch)
Dimming TypeTriple Mode (LED1 / LED2 / Both)
IndicatorsRed (Charging), Green (Charged), Blue (Working)
Charging TypeCC/CV Charging with Auto Cut-off
Brightness MemoryYes
Special FeatureSoft Start, Intelligent Brightness Control
ProtectionOvercharge, Over-discharge, Short Circuit, Reverse Polarity, Thermal
Recommended Input5V, 1A
ApplicationDual LED Lamps, Decorative Lighting, DIY Projects

Lead Time & Shipping

ParameterDetails
Dispatch BasisProcessed based on order type and quantity
Bulk Orders25–30 business days after payment
Sample / Small Orders1–5 business days after payment
Possible DelaysMay vary due to order volume or material availability; updates will be shared
Expedited OptionsAvailable on request with additional charges
Custom OrdersLonger lead time; timeline shared upon order confirmation

Warranty

ParameterDetails
Warranty Period1 Year from date of delivery
CoverageManufacturing defects only
Service TypeReplacement of defective parts after technical verification
Refund PolicyNo refunds or full product replacement

Warranty Exclusions

Conditions Not Covered
Misuse or improper handling
Physical damage, water or fire damage
Electrical damage due to incorrect connections
Tampering, modification, or unauthorized repair
Use of chemicals or improper installation
